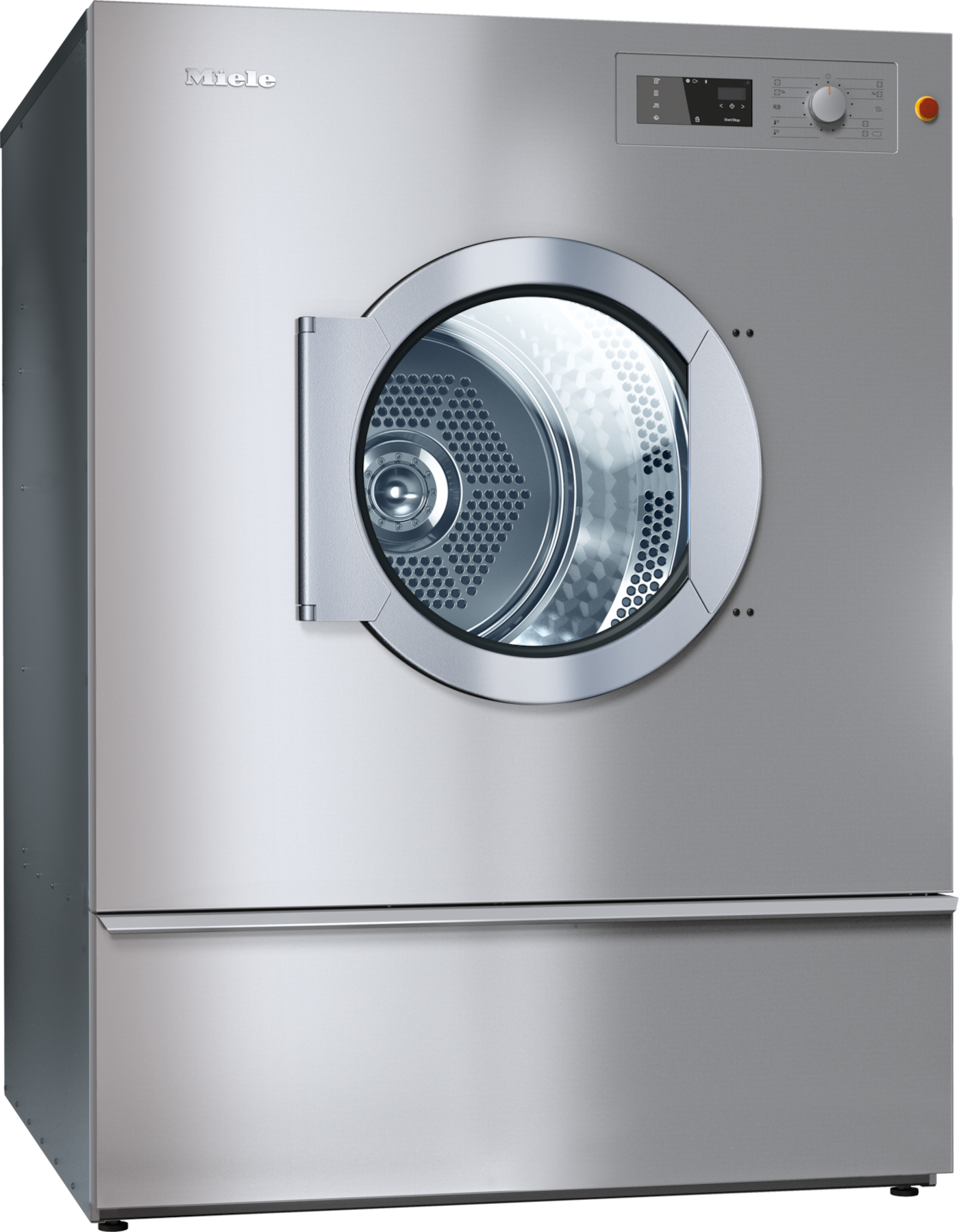

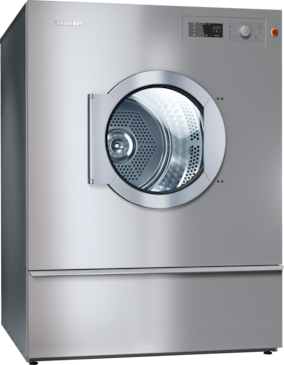

PDR 528 ROP [EL]
Professional vented dryer, electric heating with M Select ROP residual moisture control for perfect drying results.
- Drum volume 17.66 (500) ft³ (l), load size45 (20) lb (kg) – 60 (27) lb (kg)
- Unique, gentle fabric care – honeycomb drum
- Greatest energy efficiency thanks to Air Recycling
- Precision drying of all fabrics – PerfectDry
- Connected for the future using LAN and Wi-Fi
Voltage:
208/240 V 60 HZ 3 PH 100 A
Product benefits
Low consumption values Economical and efficient: Laundry machines from Miele Professional boast exceptionally low consumption values. Air recycling Low energy consumption due to recycling of pre-heated process air. Honeycomb drum Less folding, easy finishing: Laundry is dried very gently and evenly in the honeycomb drum. Short program cycles Premium commercial technology allows you to benefit from the shortest program cycles. PerfectDry system On the basis of a constant residual moisture measurement, the PerfectDry system perfectly dries garments. Intelligent tumble dryers Gentle and uniform drying thanks to intelligent technology. Easy to understand symbols The control panel is characterized by logically arranged and easy to understand symbols. M Select controls Quick, direct selection of the drying program and easy access to additional functions and settings. Connection of payment system Optimum use in self-service areas is possible thanks to connection for payment systems. Connector Box The Connector Box facilitates connections to external systems, e.g., payment, dispensing, and peak-load systems. LAN interface The LAN interface enables secure communication in the local network via a LAN cable. WLAN interface The WLAN interface enables wireless communication in the local network. Low consumption values Economical and efficient: Laundry machines from Miele Professional boast exceptionally low consumption values. Air recycling Low energy consumption due to recycling of pre-heated process air. Large capacity The large capacity drum ensures perfect drying results even with large loads. Honeycomb drum Less folding, easy finishing: Laundry is dried very gently and evenly in the honeycomb drum. Perfect anti-crease action The laundry is tumbled regularly after the end of the program to protect it from creasing. SoftLift drum ribs ensure gentle fabric care The SoftLift drum ribs allow laundry to be dried gently and evenly. Short program cycles Premium commercial technology allows you to benefit from the shortest program cycles. PerfectDry system On the basis of a constant residual moisture measurement, the PerfectDry system perfectly dries garments. Principal airflow For perfect drying results, air is passed through the drum according to the principle of longitudinal air flow. Intelligent tumble dryers Gentle and uniform drying thanks to intelligent technology. Excellent durability Professional technology ensures excellent reliability and durability for daily work routine. Easy to understand symbols The control panel is characterized by logically arranged and easy to understand symbols. M Select controls Quick, direct selection of the drying program and easy access to additional functions and settings. Large lint filter The very large filter surface is particularly easy to clean. Countdown indicator After the program has started, the display shows the cycle time remaining. Delay start up to 24 hours The program start time can be pre-set up to 24 hours in advance for efficient planning.
Product benefits
- Highlights
- Connectivity
- Efficiency
- Gentle laundry care
- Performance
- Quality
- User convenience
Highlights
Connectivity
Efficiency
Gentle laundry care
Performance
Quality
User convenience


Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Product details
PDR 528 ROP [EL]
EAN 4002516546566 / Article number 52528007NAM / Material number 12012340
| Construction type | Front loader |
| Product line | Performance |
| Front | Stainless steel |
| Load size with a load ratio of 1:25 | 45 (20) |
| Load size with a load ratio of 1:18 | 60 (27) |
| Drum volume in l | 17.66 (500) ft³ (l) |
| Drying system | Vented system |
| Door opening [Ø] in in. (mm)i | 20 1/2 (520) |
| Door-opening angle in degrees | 180 |
| Door hinging | left |
| Convertible hinging | |
| Stainless steel honeycomb drum |
- Construction type
- Front loader
- Product line
- Performance
- Front
- Stainless steel
- Load size with a load ratio of 1:25
- 45 (20)
- Load size with a load ratio of 1:18
- 60 (27)
- Drum volume in l
- 17.66 (500) ft³ (l)
- Drying system
- Vented system
- Door opening [Ø] in in. (mm)i
- 20 1/2 (520)
- Door-opening angle in degrees
- 180
- Door hinging
- left
- Convertible hinging
- Stainless steel honeycomb drum
| Suitable for hotels and restaurants | |
| Suitable for retirement and care homes | |
| Suitable for facility management | |
| Suitable for laundromats | |
| Suitable for residential homes and apartments | |
| Suitable for commercial laundromats | |
| Suitable for small businesses | |
| Suitable for universities, schools, and kindergartens | |
| Suitable for hospitals | |
| Suitable for camp sites | |
| Suitable for sports clubs | |
| Suitable for beauty salons, spas, and fitness centres | |
| Suitable for medical and dental practices | |
| Suitable for the petrochemical industry | |
| Suitable for the food-processing industry | |
| Suitable for amusement parks and holiday resorts | |
| Suitable for public / community facilities |
- Suitable for hotels and restaurants
- Suitable for retirement and care homes
- Suitable for facility management
- Suitable for laundromats
- Suitable for residential homes and apartments
- Suitable for commercial laundromats
- Suitable for small businesses
- Suitable for universities, schools, and kindergartens
- Suitable for hospitals
- Suitable for camp sites
- Suitable for sports clubs
- Suitable for beauty salons, spas, and fitness centres
- Suitable for medical and dental practices
- Suitable for the petrochemical industry
- Suitable for the food-processing industry
- Suitable for amusement parks and holiday resorts
- Suitable for public / community facilities
| Control type | M Select Benchmark |
| Programmability | Setting of defined parameters |
| Program controls | Residual moisture controlled |
| Max. delay start in h | 24i |
| Time left display | |
| Panel with easy-to-understand icons |
| Heating type | Electric |
| Electrical connection | 208/240 V 60 HZ 3 PH |
| Electric heater rating in kW | 29.4 |
| Total rated load in kW | 30.6 |
| Fuse rating in A | 100 |
- Heating type
- Electric
- Electrical connection
- 208/240 V 60 HZ 3 PH
- Electric heater rating in kW
- 29.4
- Total rated load in kW
- 30.6
- Fuse rating in A
- 100
| External dimensions, net height in in. (mm) | 64 5/8 (1640) |
| External dimensions, net width in in. (mm) | 47 1/2 (1206) |
| External dimensions, net depth in in. (mm) | 40 1/8 (1019) |
| External dimensions, gross height in in. (mm)i | 69 9/16 (1766) |
| External dimensions, gross width in in. (mm)i | 54 3/4 (1390) |
| External dimensions, gross depth in in. (mm)i | 43 5/8 (1108) |
| Net weight in lbs. (kg) | 537 (243.3) |
| Gross weight in lbs. (kg)i | 569 (258) |
| Maximum floor load in Ni | 3044 |
- External dimensions, net height in in. (mm)
- 64 5/8 (1640)
- External dimensions, net width in in. (mm)
- 47 1/2 (1206)
- External dimensions, net depth in in. (mm)
- 40 1/8 (1019)
- External dimensions, gross height in in. (mm)i
- 69 9/16 (1766)
- External dimensions, gross width in in. (mm)i
- 54 3/4 (1390)
- External dimensions, gross depth in in. (mm)i
- 43 5/8 (1108)
- Net weight in lbs. (kg)
- 537 (243.3)
- Gross weight in lbs. (kg)i
- 569 (258)
- Maximum floor load in Ni
- 3044
| Intelligent drum reversal | |
| Axial airflow | |
| Large-surface lint filter | |
| PerfectDry | |
| SoftLift drum ribs | |
| AirRecycling | |
| Communication slot | |
| Emergency shut-off | |
| Machine-independent accessories |
| Recycling rate in % | 93 |
- Recycling rate in %
- 93
| Payment system (optional) | |
| Optical interface for service access | |
| Peak-load negotiation / energy management (optional) | |
| Wi-Fi | |
| Connector Box | |
| LAN module (optional) |
| Cleaning cloths, 22 g [number] | 545 |
| Horse summer blankets [number] | 3 |
- Cleaning cloths, 22 g [number]
- 545
- Horse summer blankets [number]
- 3
| Splash protection IPX4 | |
| c ETL US | |
| Complies with Machinery Directive 2006/42/EC |
- Splash protection IPX4
- c ETL US
- Complies with Machinery Directive 2006/42/EC
