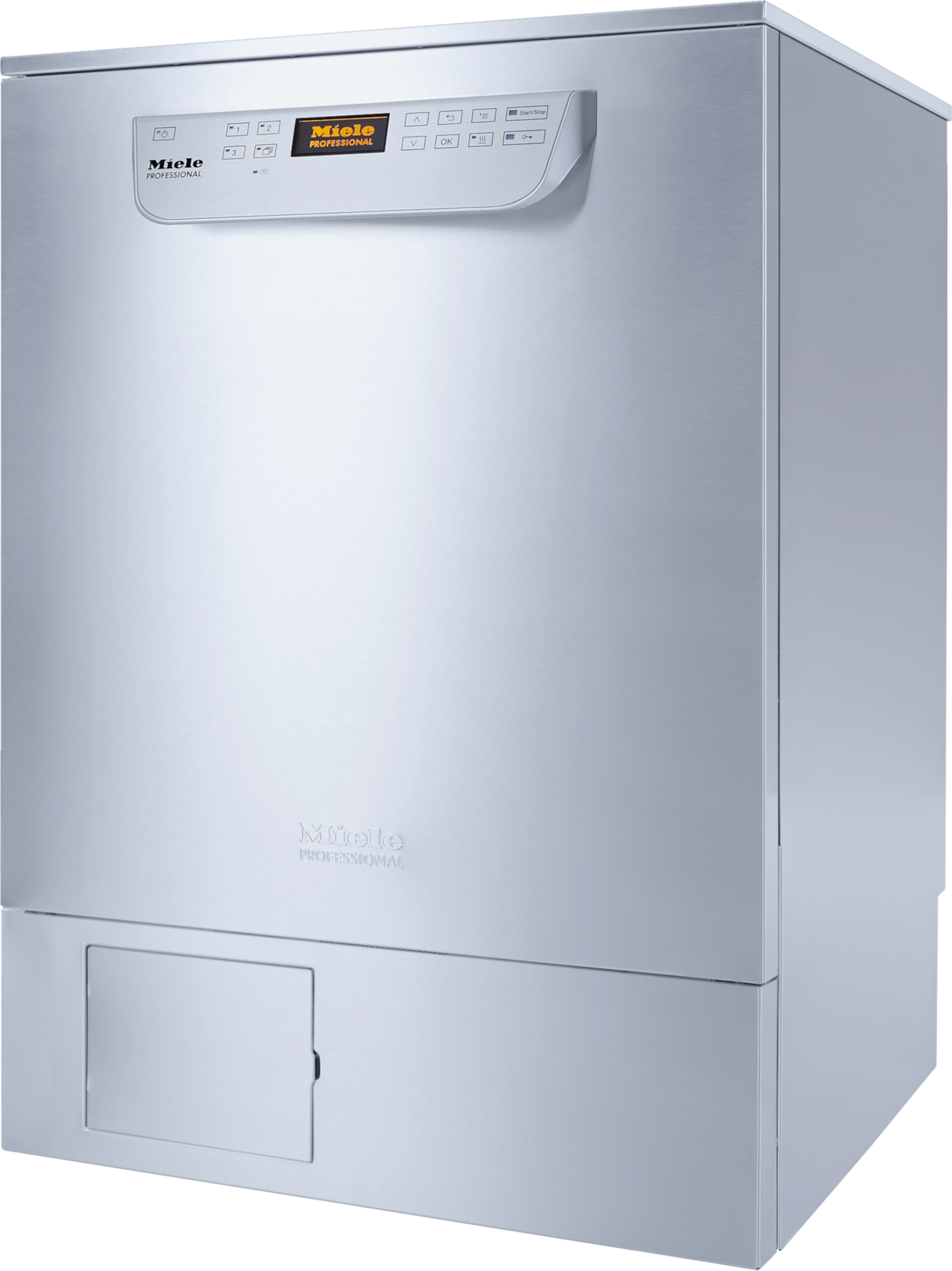

PG 8592 [WW AD]
Washer-disinfector with liquid dispensing & hot air drying DryPlus.
- Performance/cycle, e.g., 8 DIN mesh trays or 1-2 MIS sets
- Safety through monitoring - wash pressure and spray arm monitoring
- 68% less water consumption compared to predecessor model*
- Efficient hot air drying - DryPlus
- Total security - link to process documentation possible
Voltage:
2 AC 208V 60HZ 30 A
Product benefits
DryPlus Efficient hot air drying: Ideal for drying hollow instruments or narrow-lumened laboratory glassware. Crevice-free wash cabinet Perfect hygiene through optimized geometry and laser welding. Spray arm monitoring Reliable cleaning performance thanks to the monitoring of the rotation speed of the spray arm. Spray arm pressure monitoring The wash pressure is monitored for perfect cleaning results. Variable speed heater pump Only with Miele Professional: The wash pressure is perfectly tailored to the changing requirements. Integrated water softener The integrated water softener ensures optimum cleaning effectiveness. DryPlus Efficient hot air drying: Ideal for drying hollow instruments or narrow-lumened laboratory glassware. RS 232 serial interface The serial interface facilitates the exchange of data with other appliances, e.g. for process documentation. Crevice-free wash cabinet Perfect hygiene through optimized geometry and laser welding. Heater elements outside the wash cabinet A plus for hygiene: The heating elements are installed outside the wash cabinet. Easy-to-service construction Short service times thanks to maintenance-optimized machine design. Spray arm monitoring Reliable cleaning performance thanks to the monitoring of the rotation speed of the spray arm. Spray arm pressure monitoring The wash pressure is monitored for perfect cleaning results. HEPA filters Protection against contamination thanks to particle-free drying air. Process documentation Safety through the clear documentation of all the reprocessing steps. Waterproof System (WPS) Protection against flooding: In the event of problems, the system stops water intake automatically. Clear text display Everything at a glance: The display shows everything as clear text in the country-specific language. AutoClose* A light touch is all it takes: With AutoClose, the door closes by itself. Short cut buttons Quick and convenient access to frequently used programs. Large selection of components Flexible and comprehensive components for optimum cleaning performance and a variety of reprocessing options. Patented, in-door salt container Ergonomic convenience: The in-door salt container is particularly easy to fill. Can be built under a countertop The machine can be easily integrated under a countertop.
Product benefits
- Highlights
- Cleaning results
- Connectivity
- Quality
- Safety
- User convenience
Highlights
Cleaning results
Connectivity
Quality
Safety
User convenience


Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Product details
PG 8592 [WW AD]
EAN 4002516423782 / Article number 62859201CDN / Material number 11746810
| Construction type | Freestanding appliance, can be built-under, slim |
| Outer casing | Stainless steel |
| Can be built-under | |
| AutoClose – automatic door lock | |
| Buzzer, acoustic signal at end of program | |
| Easy-to-service construction |
| DIN mesh trays per cycle [number] | 8 |
| GYN specula per cycle [number] | 42 |
| MIS sets per cycle [number] | 1-2 |
| AN sets per cycle [number] | 2-3 |
- DIN mesh trays per cycle [number]
- 8
- GYN specula per cycle [number]
- 42
- MIS sets per cycle [number]
- 1-2
- AN sets per cycle [number]
- 2-3
| Circulation pump, Qmax in gal/min (l/min.) | 132.1 (500) |
| Shortest cycle time in min | 28 |
| Maximum final rinse temperature in °F (°C) | 199 (93) |
| Usable wash cabinet volume in ft³ (l) | 5.12 (145) ft³ (l) |
| Tested operating hoursi | 15000 |
- Circulation pump, Qmax in gal/min (l/min.)
- 132.1 (500)
- Shortest cycle time in min
- 28
- Maximum final rinse temperature in °F (°C)
- 199 (93)
- Usable wash cabinet volume in ft³ (l)
- 5.12 (145) ft³ (l)
- Tested operating hoursi
- 15000
| Control type | TouchControl |
| Program selection | Touch on metali |
| Short cut buttons | |
| Max. delay start in h | 24 |
| Programmability | programmable |
| Programs [number] | 19 |
| Free program slots [number] | 2 |
| A0 value controls | |
| Automatic program restart | |
| Time left display | |
| Program sequence indicator | |
| Choice of display language |
| Electrical connection | 3 AC 208V 60HZ |
| Electric heater rating in kW | 5.4 |
| Total rated load in kW | 6.2 |
| Fuse rating in A | 20 |
- Electrical connection
- 3 AC 208V 60HZ
- Electric heater rating in kW
- 5.4
- Total rated load in kW
- 6.2
- Fuse rating in A
- 20
| Cold water [number] | 1 |
| Cold water for steam condenser [number] | 1 |
| Hot water [number]i | 1 |
| Fully demineralized water [number]i | 1 |
| Required flow pressure in kPai | 200-1000 |
| Maximum drain pump height (delivery head) in in (cm) | 39 3/8 (100) |
| Integrated water softener | |
| Maximum water hardness (cold water / hot water) in (mmol/l) | 62.595 (10.7) |
| Drain pump [DN] | 0.866 (22) |
| Water protection systemi | Waterproof system |
- Cold water [number]
- 1
- Cold water for steam condenser [number]
- 1
- Hot water [number]i
- 1
- Fully demineralized water [number]i
- 1
- Required flow pressure in kPai
- 200-1000
- Maximum drain pump height (delivery head) in in (cm)
- 39 3/8 (100)
- Integrated water softener
- Maximum water hardness (cold water / hot water) in (mmol/l)
- 62.595 (10.7)
- Drain pump [DN]
- 0.866 (22)
- Water protection systemi
- Waterproof system
| Integrated drying unit | |
| Fan in kW | 0.3 |
| Heater element in kW | 2.2 |
| Air throughput in m³/h | 60 |
| Time settings in 1-minute steps | 0-120 |
| HEPA filter class | H13i |
| HEPA filter filtration efficiency (in accordance with DIN EN 1822) in % | 99.95 |
| HEPA filter service life in h | 200 |
| External dimensions, net height in in. (mm) | 32 7/8 (835) |
| External dimensions, net width in in. (mm) | 23 5/8 (600) |
| External dimensions, net depth in in. (mm) | 23 5/8 (600) |
| Packaging dimensions, gross height in in. (mm)i | 37 1/16 (940) |
| Packaging dimensions, gross width in in. (mm)i | 26 5/8 (675) |
| Packaging dimensions, gross depth in in. (mm)i | 29 3/8 (745) |
| Wash cabinet, usable height in in. (mm) | 20 1/2 (520) |
| Wash cabinet, usable width in in. (mm) | 20 7/8 (530) |
| Wash cabinet, depth of upper basket in in. (mm) | 18 11/16 (474) |
| Wash cabinet, depth of lower basket in in. (mm) | 20 1/2 (520) |
| Net weight in lb (kg) | 171.961 (78) |
| Gross weight in lb (kg)i | 187.393 (85) |
- External dimensions, net height in in. (mm)
- 32 7/8 (835)
- External dimensions, net width in in. (mm)
- 23 5/8 (600)
- External dimensions, net depth in in. (mm)
- 23 5/8 (600)
- Packaging dimensions, gross height in in. (mm)i
- 37 1/16 (940)
- Packaging dimensions, gross width in in. (mm)i
- 26 5/8 (675)
- Packaging dimensions, gross depth in in. (mm)i
- 29 3/8 (745)
- Wash cabinet, usable height in in. (mm)
- 20 1/2 (520)
- Wash cabinet, usable width in in. (mm)
- 20 7/8 (530)
- Wash cabinet, depth of upper basket in in. (mm)
- 18 11/16 (474)
- Wash cabinet, depth of lower basket in in. (mm)
- 20 1/2 (520)
- Net weight in lb (kg)
- 171.961 (78)
- Gross weight in lb (kg)i
- 187.393 (85)
| Vario TD Instr 4 mesh trays | |
| Vario TD Instr 6 mesh trays | |
| Vario TD Instr 8 mesh trays | |
| Vario TD AN | |
| Vario TD MIS | |
| Vario TD GYN | |
| Vario TD ENT | |
| Vario TD ENT + | |
| Vario TD ENT Optics | |
| Special 93°C–10' | |
| Ophthalmology | |
| Ophtha tray A 207 | |
| Baby bottles | |
| OR shoes | |
| Ward utensils | |
| Universal |
| 1 door dispenser for rinse aid | |
| 1 dispenser pump for liquid cleaning agent | |
| Volume flow control | |
| Steam condenser | |
| Spray pressure monitoring | |
| Spray arm monitoring | |
| Interface for process documentation (optional) | |
| Multi-component filter system | |
| Variable-speed heating pump | |
| Load carrier - direct coupling | |
| DryPlus | |
| In-door salt container | |
| Miele Service optical interface | |
| Wash cabinet seamlessly welded using laser technology | |
| Heater elements outside wash cabinet | |
| Wash cabinet made of high-quality stainless steel (1.4301 / 304) | |
| Extensive components (option) |
- 1 door dispenser for rinse aid
- 1 dispenser pump for liquid cleaning agent
- Volume flow control
- Steam condenser
- Spray pressure monitoring
- Spray arm monitoring
- Interface for process documentation (optional)
- Multi-component filter system
- Variable-speed heating pump
- Load carrier - direct coupling
- DryPlus
- In-door salt container
- Miele Service optical interface
- Wash cabinet seamlessly welded using laser technology
- Heater elements outside wash cabinet
- Wash cabinet made of high-quality stainless steel (1.4301 / 304)
- Extensive components (option)
| c CSA us | |
| Health Canada, Medical Device class II |
- c CSA us
- Health Canada, Medical Device class II
