PLW 6111 [DP BO SC CL H14 PR UL]

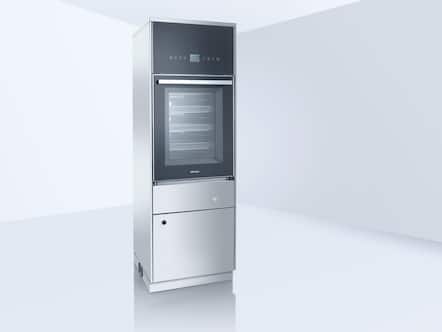

Lab washer with 3 wash levels in SlimLine design with steam condenser, boiler, printer, and chamber lighting
- Performance/cycle 126 narrow necked glassware or 121 pipettes – 7.416 (210) ft³ (l) l usable capacity
- Ergonomic loading and unloading – telescopic runners
- Flexible – 4 different level positions
- Have everything in view thanks to the all-glass door
- High capacity – reprocessing of vessels up to 50 l (13 gal)
Voltage:
3 AC 208V 60HZ 30 A
Product benefits
Boiler for preheating demin. water Program durations are shortened by demin. water already preheated in the boiler. SlimLine design The slim design, just 650 mm wide, fits in the smallest of spaces while ensuring a high capacity. All-glass door In combination with the chamber lighting, the glass door allows a visual check of the current reprocessing event. SmartLoad Wash and dry with hot air on three separate wash levels, can be used flexibly in four positions. Programmable controls Optimum performance: The freely programmable control enables excellent results with different loads. Innovative cleaning program Optimum cleaning results and value retention thanks to innovative cleaning programs for over 50 years. Integrated hot-air drying All reprocessing items are dried efficiently using hot air filtered with a HEPA filter. Drying unit Reliable reprocessing results achieved more quickly with hot air drying. RS 232 serial interface The serial interface facilitates the exchange of data with other appliances, e.g. for process documentation. USB interface Easy access to Miele Service: Firmware updates can be performed via USB stick in order to save time. Boiler for preheating demin. water Program durations are shortened by demin. water already preheated in the boiler. Steam condenser Effective moisture removal from exhaust air. SlimLine design The slim design, just 650 mm wide, fits in the smallest of spaces while ensuring a high capacity. Easy-to-service construction Short service times thanks to maintenance-optimized machine design. All-glass door In combination with the chamber lighting, the glass door allows a visual check of the current reprocessing event. HEPA filters Protection against contamination thanks to particle-free drying air. Integrated printer For paper-supported documentation, the integrated printer produces a comprehensive report on the process. SmartLoad Wash and dry with hot air on three separate wash levels, can be used flexibly in four positions. Programmable controls Optimum performance: The freely programmable control enables excellent results with different loads. Clear text display Everything at a glance: The display shows everything as clear text in the country-specific language. Setting options for agent canisters Neat and tidy: The storage unit for liquid agents.
Product benefits
- Highlights
- Cleaning results
- Connectivity
- Efficiency
- Quality
- Safety
- User convenience
Highlights
Cleaning results
Connectivity
Efficiency
Quality
Safety
User convenience

Boiler for preheating demin. water
Quicker reprocessing
Program durations are shortened by demin. water already preheated in the boiler.

SlimLine design
Space-saving
The slim design, just 650 mm wide, fits in the smallest of spaces while ensuring a high capacity.

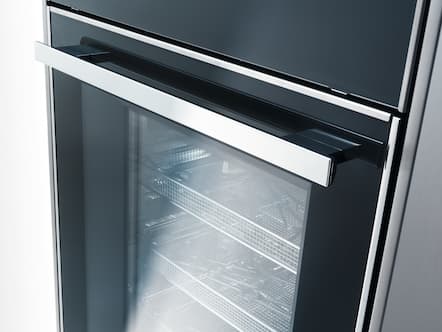

All-glass door
Easy to service
In combination with the chamber lighting, the glass door allows a visual check of the current reprocessing event.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Product details
PLW 6111 [DP BO SC CL H14 PR UL]
EAN 8051160654147 / Article number 62611177US / Material number 10959290
| Construction type | Freestanding appliance, 1 glass hinged doori |
| Heating type | Electricity |
| Front / back | Stainless Steel |
| Side panels | Stainless steel |
| Slimline construction type | |
| Number of wash levels | 3 |
| Loading and unloading with telescopic rails | |
| Electric door lock | |
| Buzzer, acoustic signal at end of program | |
| Easy-to-service construction |
- Construction type
- Freestanding appliance, 1 glass hinged doori
- Heating type
- Electricity
- Front / back
- Stainless Steel
- Side panels
- Stainless steel
- Slimline construction type
- Number of wash levels
- 3
- Loading and unloading with telescopic rails
- Electric door lock
- Buzzer, acoustic signal at end of program
- Easy-to-service construction
| Narrow necked glassware per cycle [number] | 126 |
| Test tubes per cycle [number] | 468 |
| Laboratory flasks per cycle [number] | 84 |
| Pipettes per cycle [number] | 121 |
- Narrow necked glassware per cycle [number]
- 126
- Test tubes per cycle [number]
- 468
- Laboratory flasks per cycle [number]
- 84
- Pipettes per cycle [number]
- 121
| Circulation pump, Qmax in gal/min (l/min.) | 184.941 (700) |
| Usable wash cabinet volume in cu.ft (L) | 7.416 (210) ft³ (l) |
- Circulation pump, Qmax in gal/min (l/min.)
- 184.941 (700)
- Usable wash cabinet volume in cu.ft (L)
- 7.416 (210) ft³ (l)
| Control type | MP.CON 3 |
| Program selection | Touch on Glassi |
| Programmability | Freely programmable |
| Programs [number] | 18 |
| Free program slots [number] | 20 |
| Automatic program restart | |
| Time left display | |
| Program sequence indicator | |
| Choice of display language |
| Electrical connection | 3 AC 208V 60HZ |
| Heater rating in kW | 7.5 |
| Total rated load in kW | 8.25 |
| Fuse rating in A | 30 |
| Length of power cord in m | 7.874 (2) |
- Electrical connection
- 3 AC 208V 60HZ
- Heater rating in kW
- 7.5
- Total rated load in kW
- 8.25
- Fuse rating in A
- 30
- Length of power cord in m
- 7.874 (2)
| Drying unit heating type | Electricity |
| Air throughput in ft³/min (m³/h) | 88.29 (150) ft³/min (m3/h) |
| Time settings in 1-minute steps | 0-120 |
| HEPA filter class | H14 |
| HEPA-filter filtration efficiency (DIN EN 1822) in % | 99.995 |
| Electric heater rating in kW | 4 |
- Drying unit heating type
- Electricity
- Air throughput in ft³/min (m³/h)
- 88.29 (150) ft³/min (m3/h)
- Time settings in 1-minute steps
- 0-120
- HEPA filter class
- H14
- HEPA-filter filtration efficiency (DIN EN 1822) in %
- 99.995
- Electric heater rating in kW
- 4
| External dimensions, net height in in. (mm) | 73 5/8 (1870) in (mm) |
| External dimensions, net width in in. (mm) | 25 5/8 (650) in (mm) |
| External dimensions, net depth in in. (mm) | 27 1/16 (687) in (mm) |
| External dimensions, gross height in in. (mm)i | 83 1/8 (2110) |
| External dimensions, gross width in in. (mm)i | 37 1/4 (945) |
| External dimensions, gross depth in in. (mm)i | 33 1/8 (840) |
| Wash cabinet, height in in. (mm) | 26 3/16 (665) |
| Wash cabinet, width in in. (mm) | 21 5/16 (540) |
| Wash cabinet, depth in in. (mm) | 23 1/16 (585) |
| Rack height above floor in in. (mm) | 33 1/2 (850) |
| Net weight in lb (kg) | 554 (251) |
| Gross weight in lb (kg)i | 574 (260) |
| Maximum floor load in N/m²i | 4000 |
- External dimensions, net height in in. (mm)
- 73 5/8 (1870) in (mm)
- External dimensions, net width in in. (mm)
- 25 5/8 (650) in (mm)
- External dimensions, net depth in in. (mm)
- 27 1/16 (687) in (mm)
- External dimensions, gross height in in. (mm)i
- 83 1/8 (2110)
- External dimensions, gross width in in. (mm)i
- 37 1/4 (945)
- External dimensions, gross depth in in. (mm)i
- 33 1/8 (840)
- Wash cabinet, height in in. (mm)
- 26 3/16 (665)
- Wash cabinet, width in in. (mm)
- 21 5/16 (540)
- Wash cabinet, depth in in. (mm)
- 23 1/16 (585)
- Rack height above floor in in. (mm)
- 33 1/2 (850)
- Net weight in lb (kg)
- 554 (251)
- Gross weight in lb (kg)i
- 574 (260)
- Maximum floor load in N/m²i
- 4000
| Hygiene | |
| Laboratory glassware reprocessing | |
| Plastics |
- Hygiene
- Laboratory glassware reprocessing
- Plastics
| 2 integrated hose dispenser pumps for liquid media | |
| Boiler for preheating fully demineralized water | |
| Steam condenser | |
| Volume flow control | |
| Interface for process documentation | |
| Multi-component filter system | |
| Load carrier - direct coupling | |
| Integrated hot-air drying | |
| Integrated printer for process documentation | |
| Wash cabinet made from high-quality stainless steel (1.4404 / 316L) | |
| Base | |
| Chamber lighting |
- 2 integrated hose dispenser pumps for liquid media
- Boiler for preheating fully demineralized water
- Steam condenser
- Volume flow control
- Interface for process documentation
- Multi-component filter system
- Load carrier - direct coupling
- Integrated hot-air drying
- Integrated printer for process documentation
- Wash cabinet made from high-quality stainless steel (1.4404 / 316L)
- Base
- Chamber lighting
| RoHS Directive 2011/65/EU | |
| c CSA us |
- RoHS Directive 2011/65/EU
- c CSA us
