Back to Laboratory glasswashers

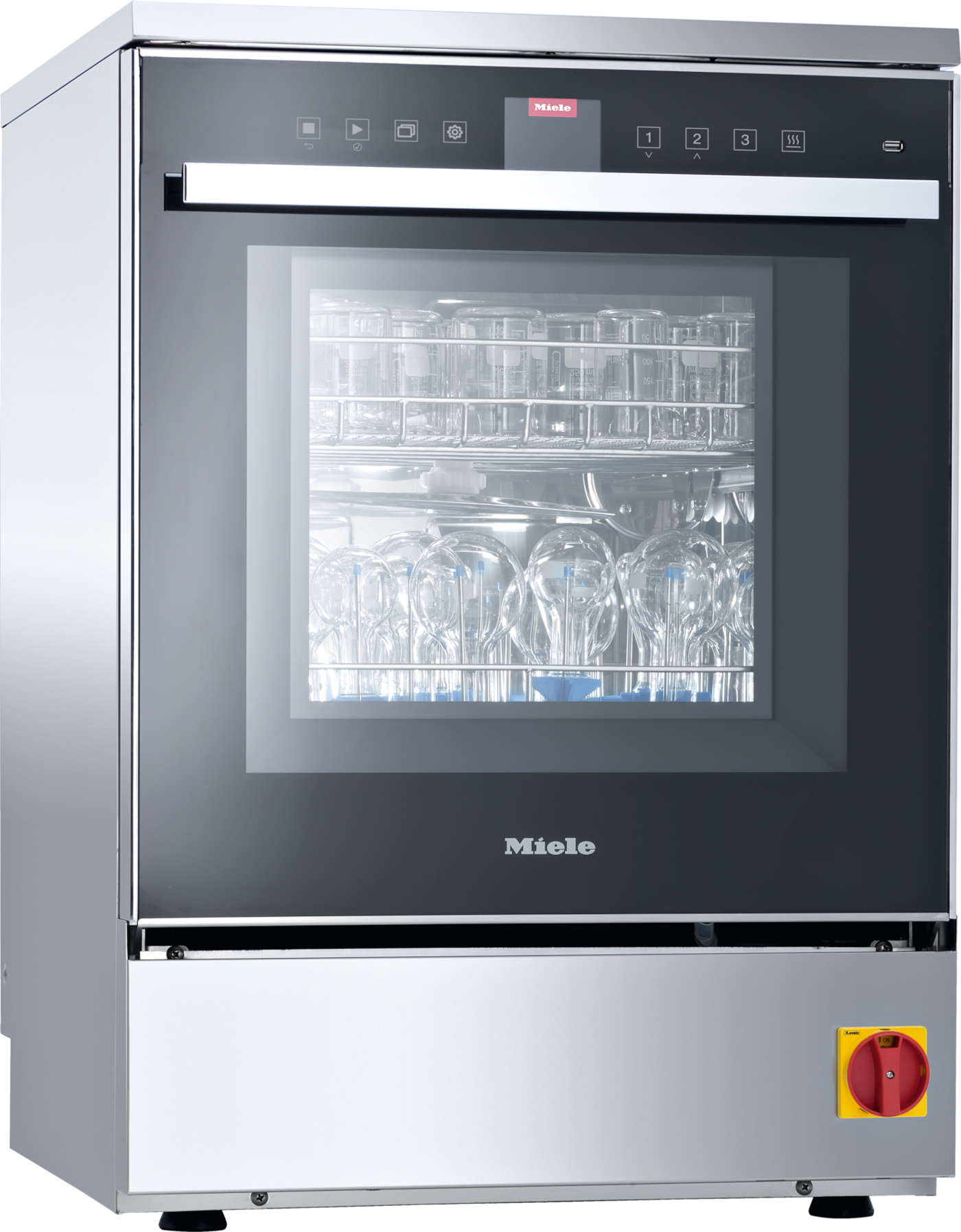

PLW 8505
Laboratory glassware washer with powerful circulation pump for laboratory applications.
- Perf./cycle, e.g., 39narrow necked/laboratory glassware w/ injector nozzles
- Simple operation – LCD color display with Touch on Glass
- Dispense process chemicals easily: 2 integrated dispenser pumps
- With Di water connection – final rinse with fully demin. water
- Have everything in view thanks to the all-glass door
Voltage:
AC 115V 60HZ 20 A
Product benefits
All-glass door With the all-glass door, you can perform a visual check during the reprocessing phase. High circulation rate Powerful circulation pumps ensure thorough cleaning. Innovative cleaning program Optimum cleaning results and value retention thanks to innovative cleaning programs for over 50 years. Easy-to-service construction Short service times thanks to maintenance-optimized machine design. Use of stainless steel The wash cabinet, spray arms & filters are made from top-grade stainless steel 1.4404 to ensure the best quality. All-glass door With the all-glass door, you can perform a visual check during the reprocessing phase. Clear text display Everything at a glance: The display shows everything as clear text in the country-specific language. Short cut buttons Quick and convenient access to frequently used programs. Can be built under a countertop The machine can be easily integrated under a countertop.
Product benefits
- Highlights
- Cleaning results
- Quality
- User convenience
Highlights
Cleaning results
Quality
User convenience

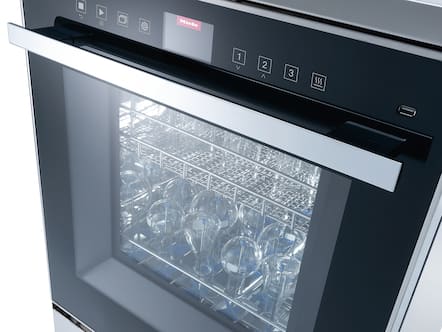

All-glass door
Reprocessing with perspective
With the all-glass door, you can perform a visual check during the reprocessing phase.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Product details
PLW 8505
EAN 8051160650637 / Article number 62850501USA / Material number 11093230
| Construction type | Freestanding/undercounter appliance, slim |
| Outer casing | Stainless steel |
| All-glass door | |
| Can be built-under | |
| Electric door lock | |
| Buzzer, acoustic signal at end of program | |
| Easy-to-service construction |
| Narrow necked glassware per cycle [number] | 39 |
- Narrow necked glassware per cycle [number]
- 39
| Circulation pump, Qmax in gal/min (l/min.) | 118.9 (450) |
| Maximum final rinse temperature in °F (°C) | 199 (93) |
| Usable wash cabinet volume in ft³ (l) | 5.33 (151) ft³ (l) |
- Circulation pump, Qmax in gal/min (l/min.)
- 118.9 (450)
- Maximum final rinse temperature in °F (°C)
- 199 (93)
- Usable wash cabinet volume in ft³ (l)
- 5.33 (151) ft³ (l)
| Control type | Electronic controls |
| Program selection | Touch on Glass |
| Short cut buttons | |
| Programs [number] | 7 |
| Free program slots [number] | 2 |
| Time left display | |
| Program sequence indicator | |
| Choice of display language |
| Electrical connection | AC 115V 60HZ |
| Electric heater rating in kW | 1 |
| Total rated load in kW | 1.6 |
| Fuse rating in A | 20 |
| NEMA plug: 5–20 | |
| Length of power cord in ft (m)i | 6 (2) |
- Electrical connection
- AC 115V 60HZ
- Electric heater rating in kW
- 1
- Total rated load in kW
- 1.6
- Fuse rating in A
- 20
- NEMA plug: 5–20
- Length of power cord in ft (m)i
- 6 (2)
| External dimensions, net height in in. (mm) | 33 1/2 (850) |
| External dimensions, net width in in. (mm) | 23 5/8 (600) |
| External dimensions, net depth in in. (mm) | 24 13/16 (630) |
| Packaging dimensions, gross height in in. (mm)i | 39 13/16 (1010) |
| Packaging dimensions, gross width in in. (mm)i | 31 (786) |
| Packaging dimensions, gross depth in in. (mm)i | 29 3/16 (740) |
| Wash cabinet, usable height in in. (mm) | 25 5/8 (650) |
| Wash cabinet, usable width in in. (mm) | 21 1/8 (535) |
| Wash cabinet, usable depth in in. (mm) | 19 1/2 (495) |
| Net weight in lb (kg) | 143.301 (65) |
| Gross weight in lb (kg)i | 171.961 (78) |
| Maximum floor load in N/m²i | 1500 |
- External dimensions, net height in in. (mm)
- 33 1/2 (850)
- External dimensions, net width in in. (mm)
- 23 5/8 (600)
- External dimensions, net depth in in. (mm)
- 24 13/16 (630)
- Packaging dimensions, gross height in in. (mm)i
- 39 13/16 (1010)
- Packaging dimensions, gross width in in. (mm)i
- 31 (786)
- Packaging dimensions, gross depth in in. (mm)i
- 29 3/16 (740)
- Wash cabinet, usable height in in. (mm)
- 25 5/8 (650)
- Wash cabinet, usable width in in. (mm)
- 21 1/8 (535)
- Wash cabinet, usable depth in in. (mm)
- 19 1/2 (495)
- Net weight in lb (kg)
- 143.301 (65)
- Gross weight in lb (kg)i
- 171.961 (78)
- Maximum floor load in N/m²i
- 1500
| Pre-cleaning | |
| Short | |
| Standard | |
| Intensive | |
| Analytic | |
| Microbiology | |
| Plastics |
- Pre-cleaning
- Short
- Standard
- Intensive
- Analytic
- Microbiology
- Plastics
| 1 dispenser pump for liquid cleaning agent | |
| 1 dispenser pump for neutralizing agent | |
| Steam condenser | |
| Pump with high circulation rate | |
| Load carrier - direct coupling | |
| Indirect drying via heater elements | |
| Wash cabinet made from high-quality stainless steel (1.4404 / 316L) |
| CE | |
| IP safety class according to EN 60529: IP 21 | |
| CSA UL |
- CE
- IP safety class according to EN 60529: IP 21
- CSA UL
