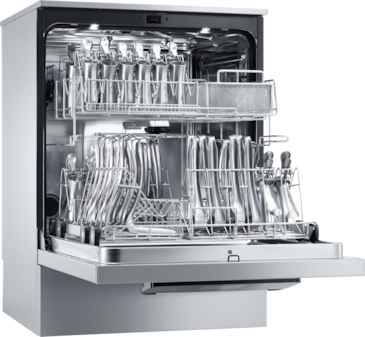

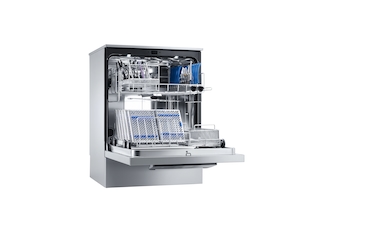

PWD 8682 [U DS5 2AC208V/60HZ]
Washer-disinfector with DI water connection, liquid dispensing & EcoDry function.

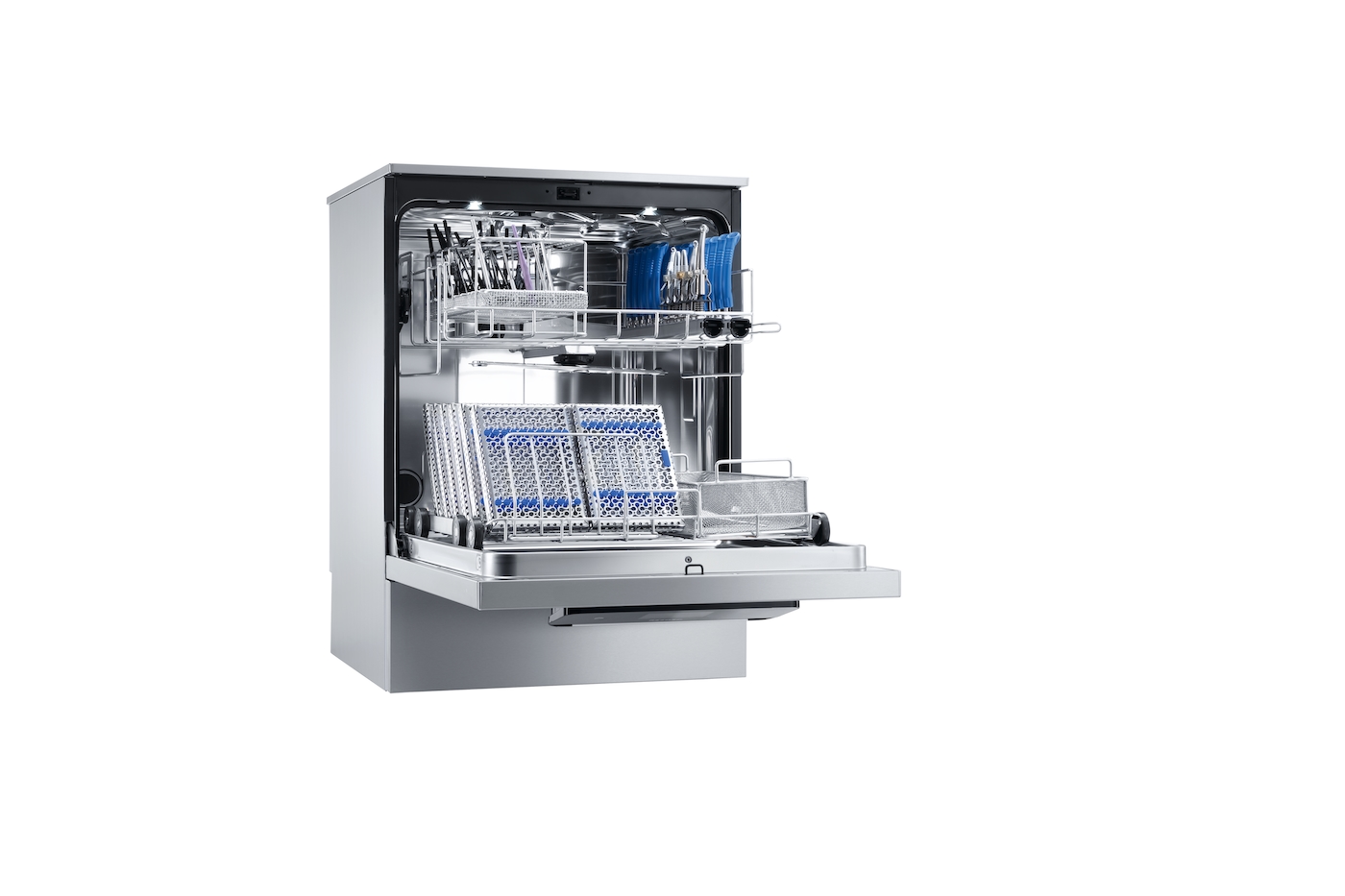

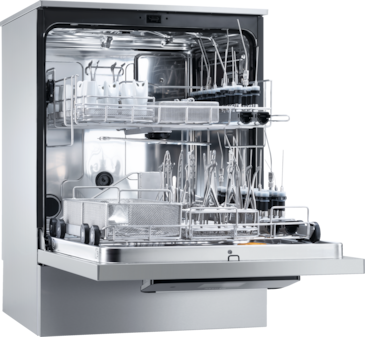

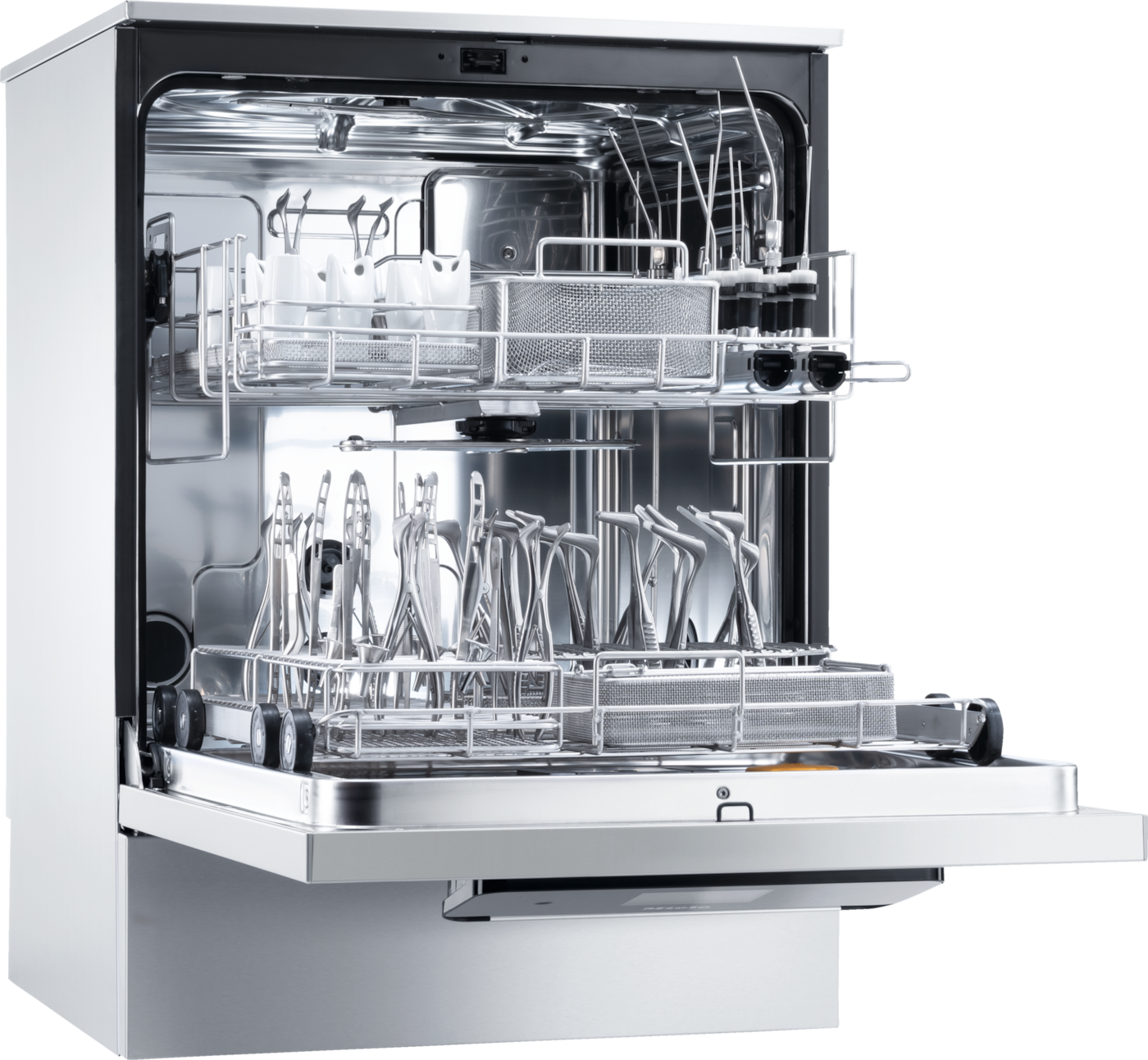

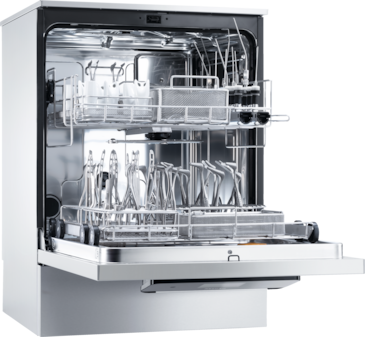

- Performance/cycle, e.g., 44 handpieces or 12 large / 24 medium sized cassettes

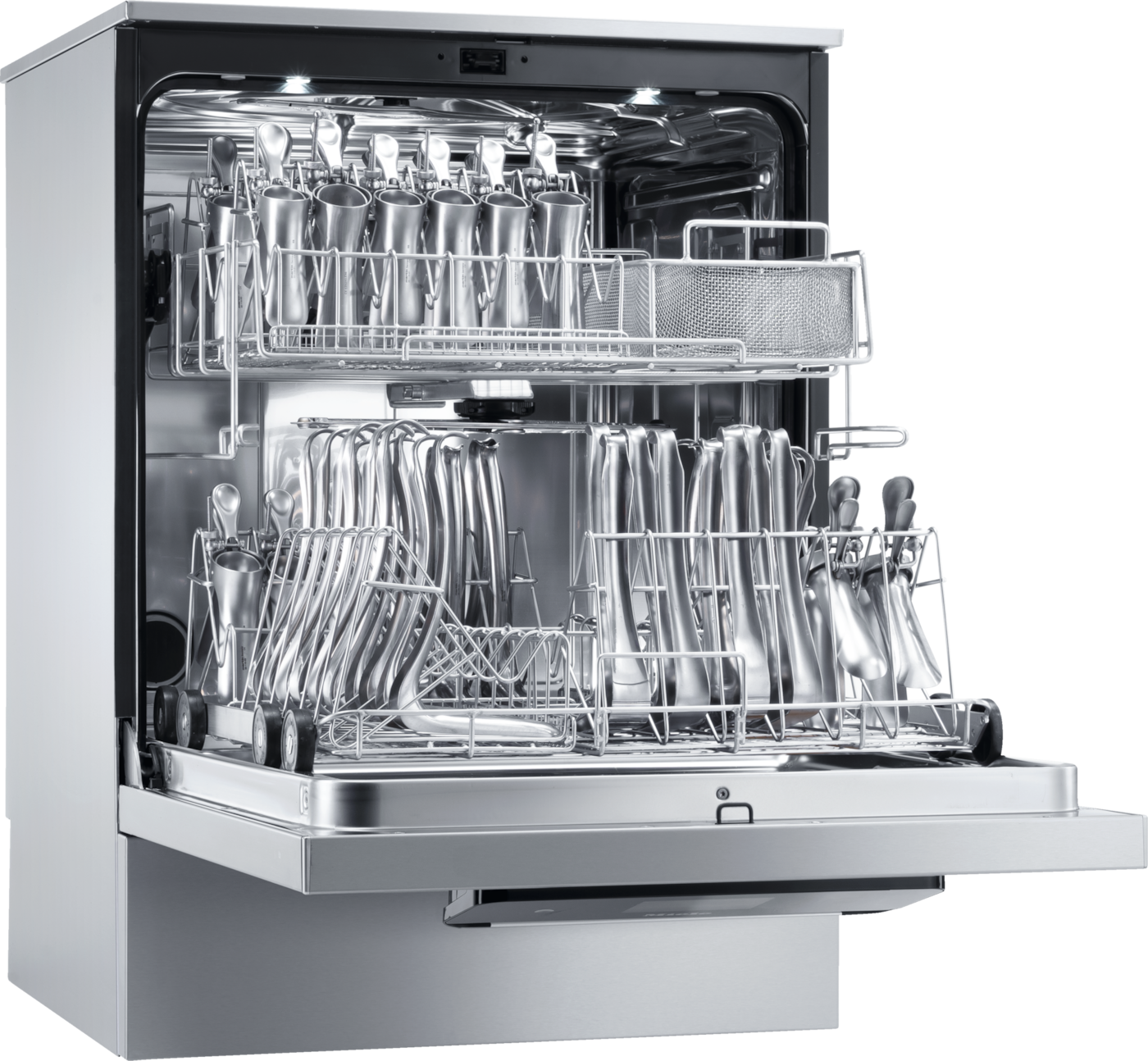

- Performance/cycle, e.g., 8 DIN mesh trays or 48 GYN specula
- Safety through monitoring - wash pressure and spray arm monitoring

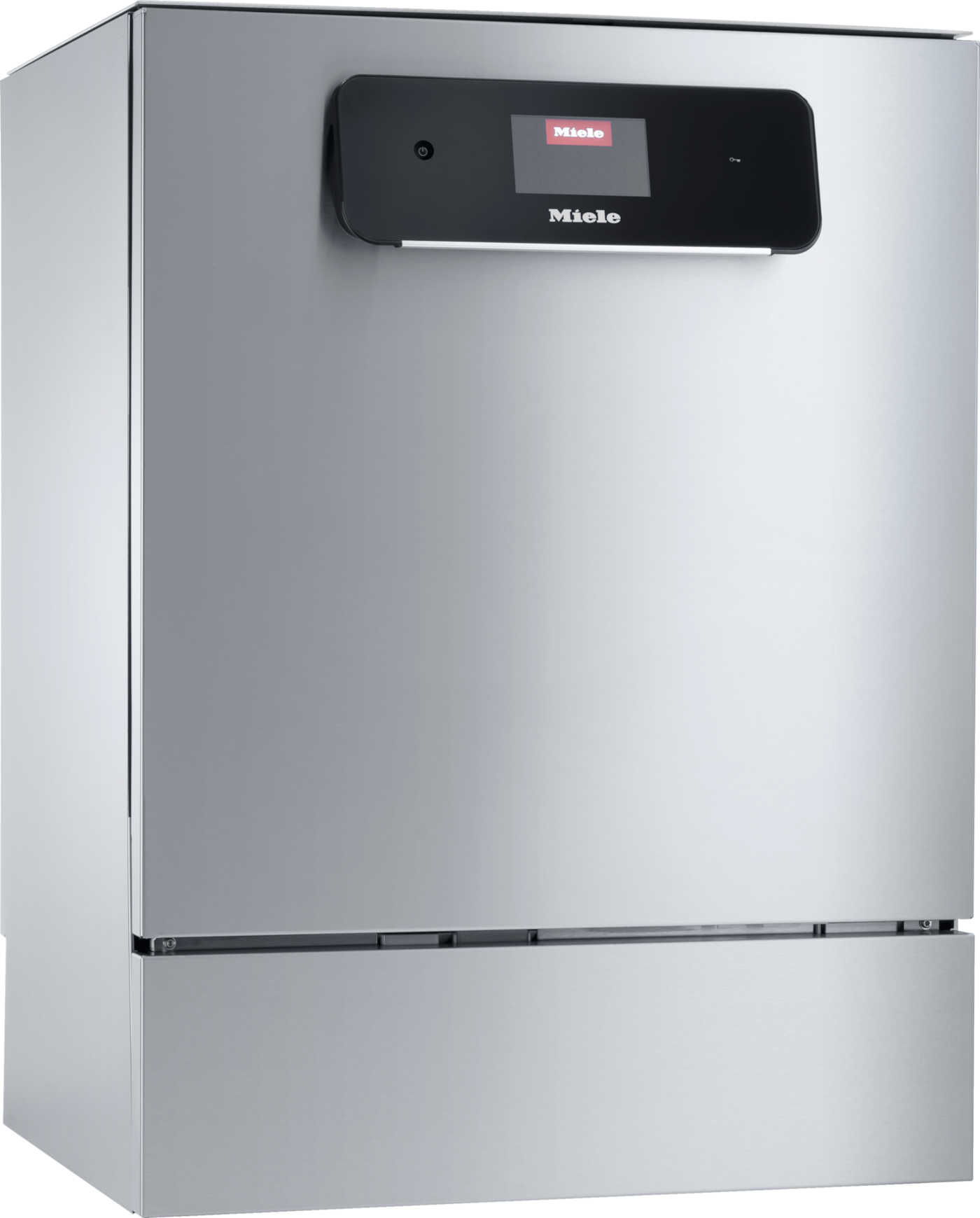

- Maximum user convenience with M Touch Flex full-touch colour display
- Convenient drying support - EcoDry
- Connectivity as standard via Wi-Fi
Voltage:
2 AC 208V 60HZ 30 A
Product benefits
AutoOpen function* Quick drying: At the end of the reprocessing program the machine door opens automatically. Crevice-free wash cabinet Perfect hygiene through optimized geometry and laser welding. Spray arm monitoring Reliable cleaning performance thanks to the monitoring of the rotation speed of the spray arm. Spray arm pressure monitoring The wash pressure is monitored for perfect cleaning results. How-to sequences This reduces downtimes and ensures smooth processes. M Touch Flex controls Use all programs and machine functions conveniently with a touch of a fingertip on the plain text touch display. Chamber lighting The machine has 2 LEDs in the top of the wash cabinet. Variable speed heater pump Only with Miele Professional: The wash pressure is perfectly tailored to the changing requirements. Integrated water softener The integrated water softener ensures optimum cleaning effectiveness. AutoOpen function* Quick drying: At the end of the reprocessing program the machine door opens automatically. Wi-Fi interface Wi-Fi for flexible and secure communication Miele MOVE Connect (option) Compatible with the optional Miele MOVE Connect software solution for networking the appliance. Miele MOVE MedDent+ (option) Compatible with the optional Miele MOVE MedDent+ software solution for extended process documentation. Crevice-free wash cabinet Perfect hygiene through optimized geometry and laser welding. Heater elements outside the wash cabinet A plus for hygiene: The heating elements are installed outside the wash cabinet. Easy-to-service construction Short service times thanks to maintenance-optimized machine design. Spray arm monitoring Reliable cleaning performance thanks to the monitoring of the rotation speed of the spray arm. Spray arm pressure monitoring The wash pressure is monitored for perfect cleaning results. Process documentation Safety through the clear documentation of all the reprocessing steps. Waterproof System (WPS) Protection against flooding: In the event of problems, the system stops water intake automatically. How-to sequences This reduces downtimes and ensures smooth processes. M Touch Flex controls Use all programs and machine functions conveniently with a touch of a fingertip on the plain text touch display. Chamber lighting The machine has 2 LEDs in the top of the wash cabinet. Clear text display Everything at a glance: The display shows everything as clear text in the country-specific language. Flexible language selection The language setting can be changed at any time – even during a cleaning process. DS5 Flex suction lance Dispenser module for 5 L canisters, for automatic dispensing of liquid media, with empty level indicator. Process approval directly via the display Cycles can be approved directly on the machine, simplifying many everyday processes. AutoClose* A light touch is all it takes: With AutoClose, the door closes by itself. Large selection of components Flexible and comprehensive components for optimum cleaning performance and a variety of reprocessing options. Patented, in-door salt container Ergonomic convenience: The in-door salt container is particularly easy to fill. Can be built under a countertop The machine can be easily integrated under a countertop.
Product benefits
- Highlights
- Cleaning results
- Connectivity
- Quality
- Safety
- User convenience
Highlights
Cleaning results
Connectivity
Quality
Safety
User convenience

AutoOpen function*
Convenient drying support
Quick drying: At the end of the reprocessing program the machine door opens automatically.

Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Product details
PWD 8682 [U DS5 2AC208V/60HZ]
EAN 4002516883838 / Article number 62868222NAM / Material number 12798520
| Construction type | Freestanding appliance, can be built-under, slim |
| Product line | ExpertLine |
| Outer casing | Stainless steel |
| Control panel colour | Black |
| Lid | Without lid |
| Can be built-under | |
| Number of wash levels | 2 |
| AutoClose – automatic door lock | |
| Buzzer, acoustic signal at end of program | |
| Easy-to-service construction |
| Suitable for hospitals | |
| Suitable for dental practices | |
| Suitable for medical practices | |
| Suitable for outpatient surgery practices | |
| Suitable for veterinary practices | |
| Suitable for podiatry practices |

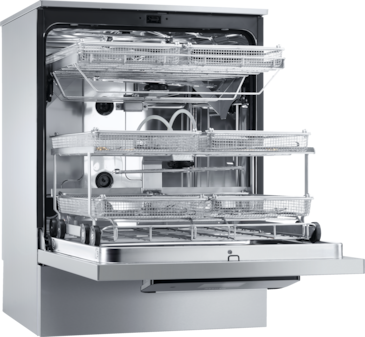

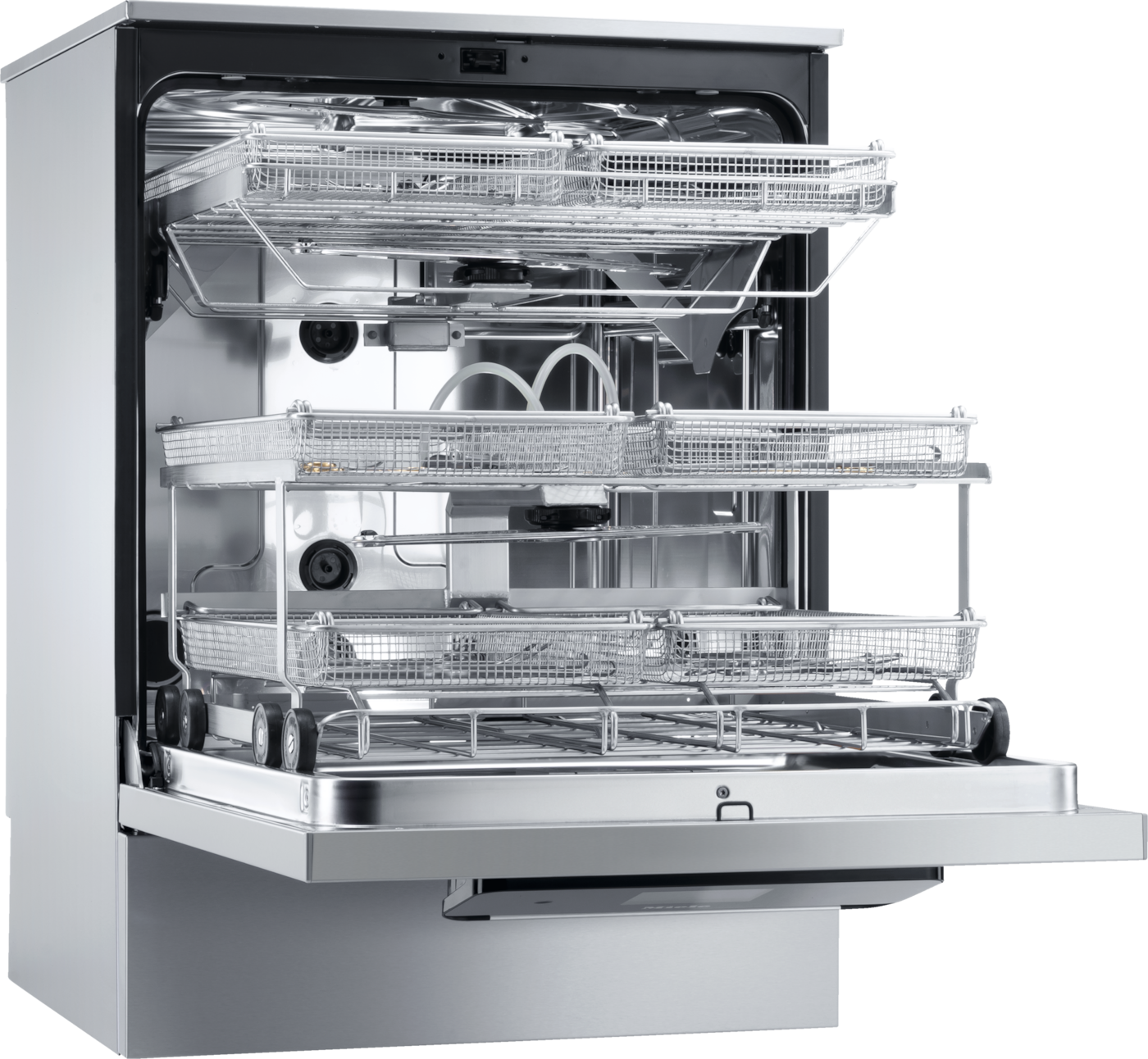

| DIN mesh trays per cycle [number] | 8 |
| GYN specula per cycle [number] | 48 |

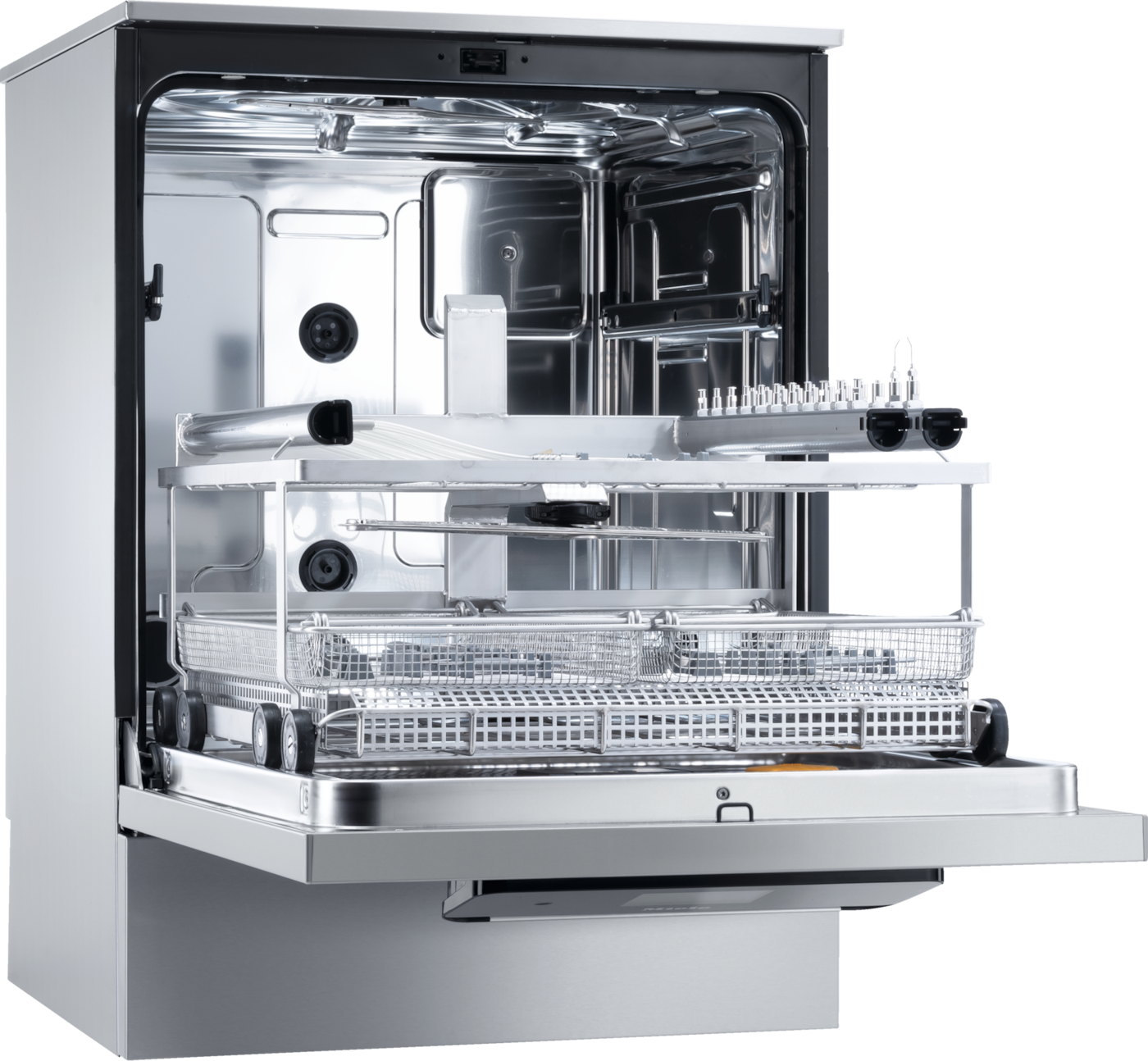

| MIS sets per cycle [number] | 1-2 |
| Ophthalmology sets per cycle [number] | 8 |

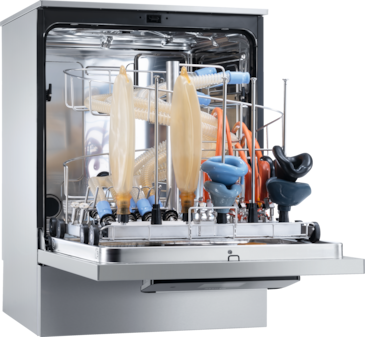

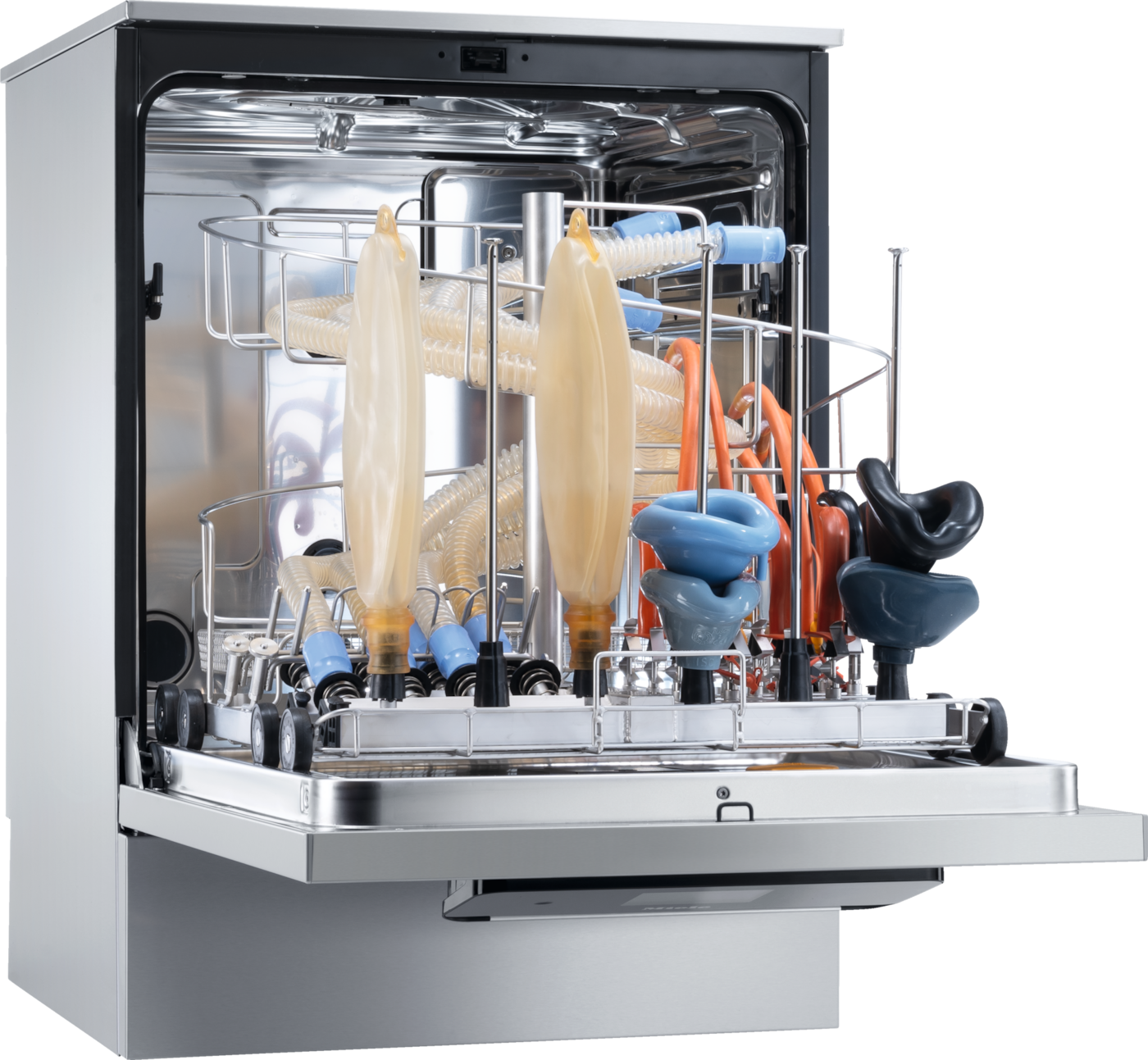

| AN sets per cycle [number] | 2-3 |

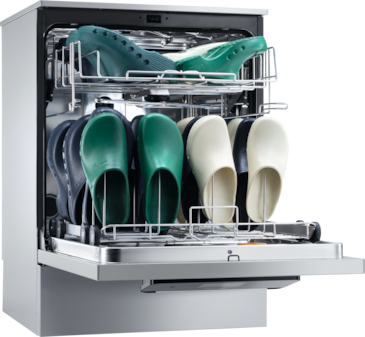

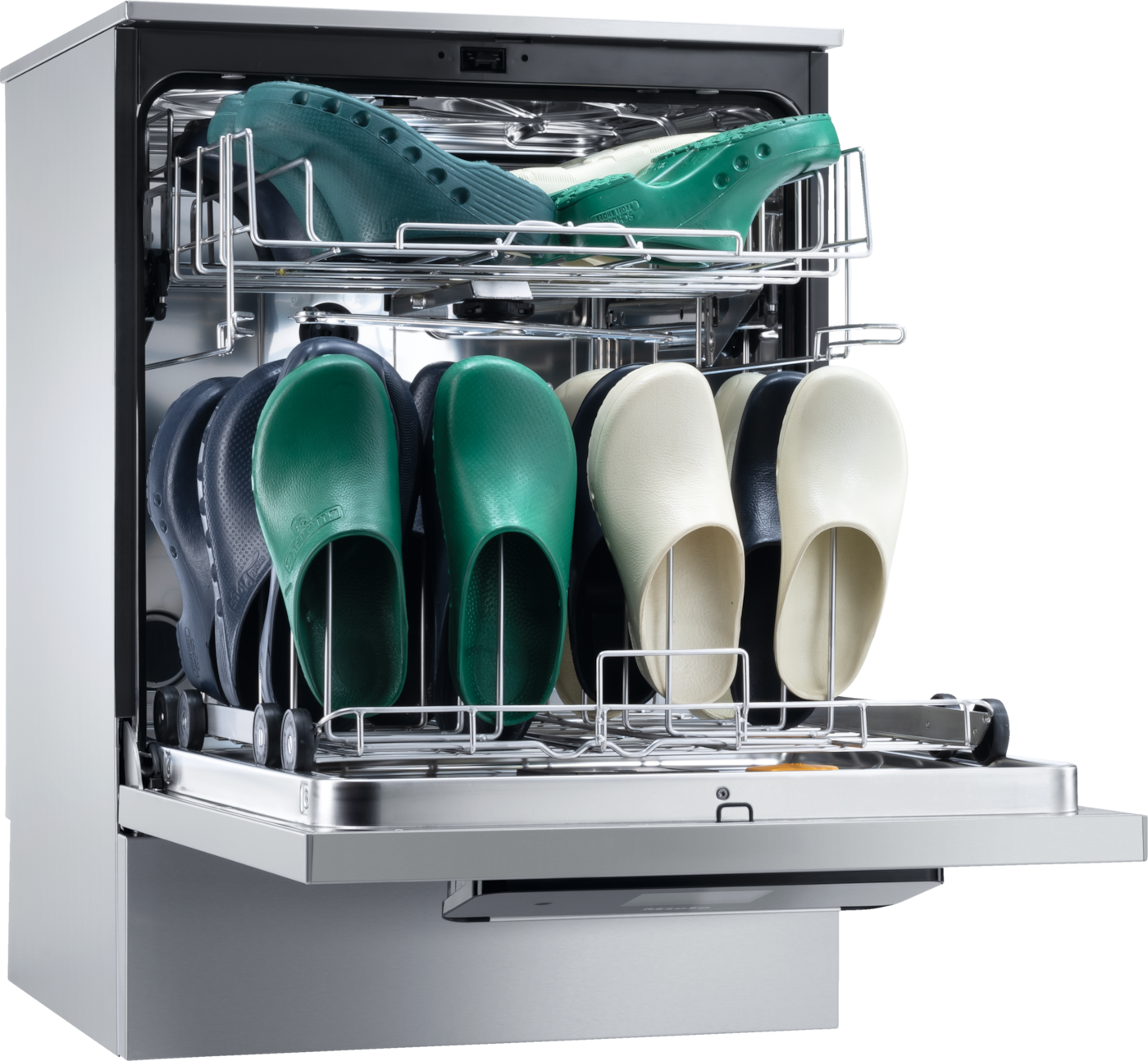

| OR shoes per cycle [number] | 28 |
| Surgical saliva extractors per cycle [number] | 44 |

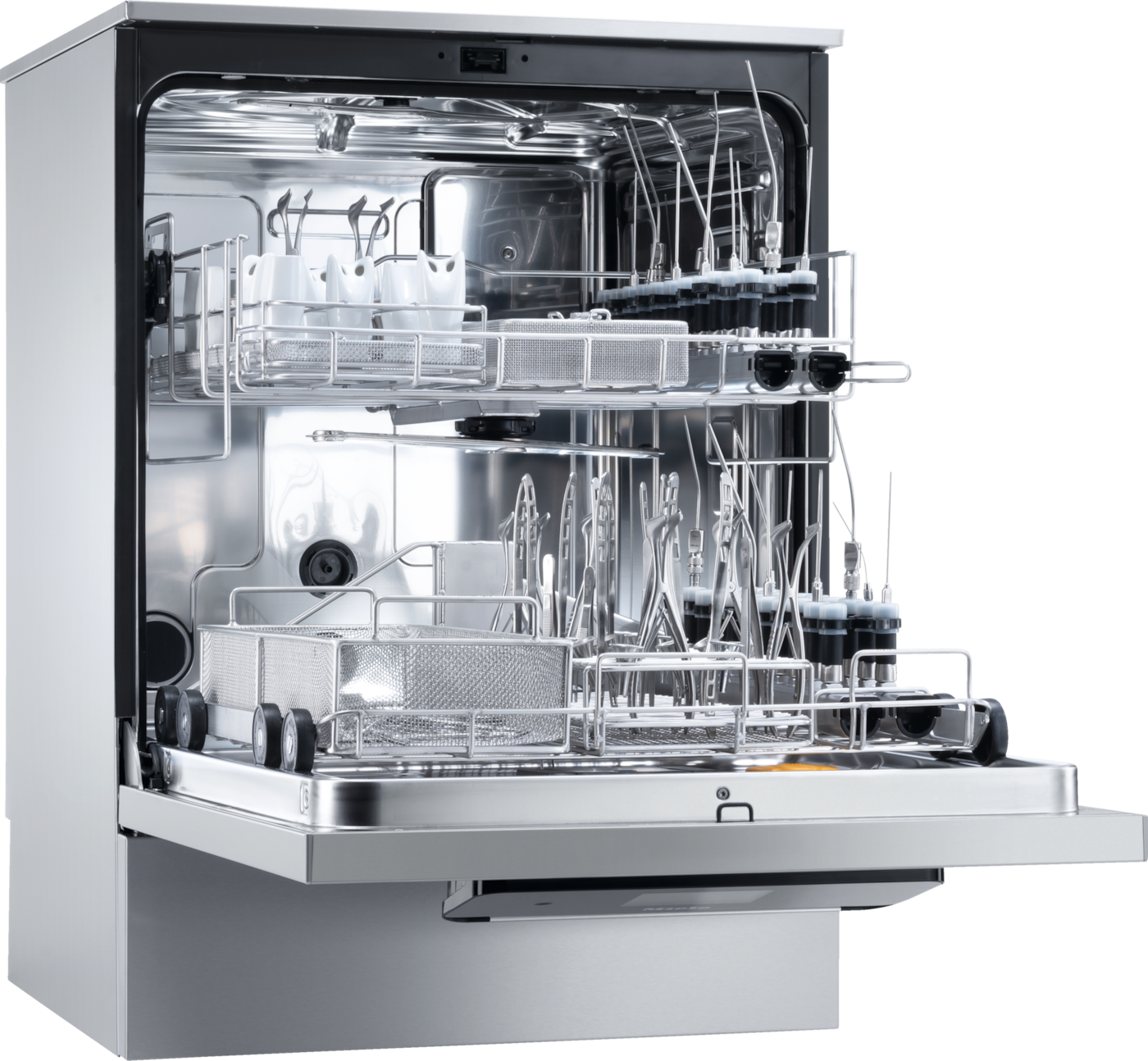

| Lumened instruments per cycle [number] | 44 |
| Handpieces per cycle [number] | 44 |
- DIN mesh trays per cycle [number]
- 8
- GYN specula per cycle [number]
- 48
- MIS sets per cycle [number]
- 1-2
- Ophthalmology sets per cycle [number]
- 8
- AN sets per cycle [number]
- 2-3
- OR shoes per cycle [number]
- 28
- Surgical saliva extractors per cycle [number]
- 44
- Lumened instruments per cycle [number]
- 44
- Handpieces per cycle [number]
- 44
| Circulation pump, Qmax in gal/min (l/min.) | 132.1 (500) |
| Maximum final rinse temperature in °F (°C) | 199 (93) |
| Usable wash cabinet volume in ft³ (l) | 5.12 (145) ft³ (l) |
| Tested operating hoursi | 15000 |
- Circulation pump, Qmax in gal/min (l/min.)
- 132.1 (500)
- Maximum final rinse temperature in °F (°C)
- 199 (93)
- Usable wash cabinet volume in ft³ (l)
- 5.12 (145) ft³ (l)
- Tested operating hoursi
- 15000
| Miele MOVE Connect (option) | |
| Miele MOVE MedDent+ (option) |
- Miele MOVE Connect (option)
- Miele MOVE MedDent+ (option)
| Control type | M Touch Flex |
| Process approval directly via the display | |
| Max. delay start in h | 24 |
| Programmability | programmable |
| Programs [number] | 23 |
| Free program slots [number] | 5 |
| A0 value controls | |
| Time left display | |
| Program sequence indicator | |
| Choice of display language |
| Electrical connection | 3 AC 208V 60HZ |
| Electric heater rating in kW | 5.4 |
| Total rated load in kW | 6.2 |
| Fuse rating in A | 20 |
- Electrical connection
- 3 AC 208V 60HZ
- Electric heater rating in kW
- 5.4
- Total rated load in kW
- 6.2
- Fuse rating in A
- 20
| Cold water [number] | 1 |
| Hot water [number]i | 1 |
| Fully demineralized water [number]i | 1 |
| VEP feed pump for DI water (option)i | |
| Required flow pressure in kPai | 200-1000 |
| Maximum drain pump height (delivery head) in in (cm) | 39 3/8 (100) |
| Integrated water softener | |
| Maximum water hardness (cold water / hot water) in (mmol/l) | 62.595 (10.7) |
| Drain pump [DN] | 0.866 (22) |
| Water protection systemi | Waterproof system |
- Cold water [number]
- 1
- Hot water [number]i
- 1
- Fully demineralized water [number]i
- 1
- VEP feed pump for DI water (option)i
- Required flow pressure in kPai
- 200-1000
- Maximum drain pump height (delivery head) in in (cm)
- 39 3/8 (100)
- Integrated water softener
- Maximum water hardness (cold water / hot water) in (mmol/l)
- 62.595 (10.7)
- Drain pump [DN]
- 0.866 (22)
- Water protection systemi
- Waterproof system
| External dimensions, net height in in. (mm) | 32 5/16 (820) |
| External dimensions, net width in in. (mm) | 23 9/16 (598) |
| External dimensions, net depth in in. (mm) | 23 9/16 (598) |
| Packaging dimensions, gross height in in. (mm)i | 36 1/4 (920) |
| Packaging dimensions, gross width in in. (mm)i | 26 7/16 (670) |
| Packaging dimensions, gross depth in in. (mm)i | 29 3/16 (740) |
| Wash cabinet, usable height in in. (mm) | 20 1/2 (520) |
| Wash cabinet, usable width in in. (mm) | 20 7/8 (530) |
| Wash cabinet, depth of upper basket in in. (mm) | 18 11/16 (474) |
| Wash cabinet, depth of lower basket in in. (mm) | 20 1/2 (520) |
| Net weight in lb (kg) | 158.733 (72) |
| Gross weight in lb (kg)i | 178.575 (81) |
| Maximum floor load in N/m²i | 1220 |
- External dimensions, net height in in. (mm)
- 32 5/16 (820)
- External dimensions, net width in in. (mm)
- 23 9/16 (598)
- External dimensions, net depth in in. (mm)
- 23 9/16 (598)
- Packaging dimensions, gross height in in. (mm)i
- 36 1/4 (920)
- Packaging dimensions, gross width in in. (mm)i
- 26 7/16 (670)
- Packaging dimensions, gross depth in in. (mm)i
- 29 3/16 (740)
- Wash cabinet, usable height in in. (mm)
- 20 1/2 (520)
- Wash cabinet, usable width in in. (mm)
- 20 7/8 (530)
- Wash cabinet, depth of upper basket in in. (mm)
- 18 11/16 (474)
- Wash cabinet, depth of lower basket in in. (mm)
- 20 1/2 (520)
- Net weight in lb (kg)
- 158.733 (72)
- Gross weight in lb (kg)i
- 178.575 (81)
- Maximum floor load in N/m²i
- 1220
| Vario TD Intensive | |
| Vario TD Dental | |
| Vario Dental + | |
| Vario TD Instr 4 mesh trays | |
| Vario TD Instr 6 mesh trays | |
| Vario TD Instr 8 mesh trays | |
| Vario TD Container | |
| Vario TD AN | |
| Vario TD MIS | |
| Vario TD GYN | |
| Vario TD ENT | |
| Vario TD ENT + | |
| Vario TD ENT Optics | |
| Ophthalmology | |
| Ophtha tray A 207 | |
| Baby bottles | |
| OR shoes | |
| Ward utensils | |
| Universal | |
| Cold water rinse |
- Vario TD Intensive
- Vario TD Dental
- Vario Dental +
- Vario TD Instr 4 mesh trays
- Vario TD Instr 6 mesh trays
- Vario TD Instr 8 mesh trays
- Vario TD Container
- Vario TD AN
- Vario TD MIS
- Vario TD GYN
- Vario TD ENT
- Vario TD ENT +
- Vario TD ENT Optics
- Ophthalmology
- Ophtha tray A 207
- Baby bottles
- OR shoes
- Ward utensils
- Universal
- Cold water rinse
| 1 door dispenser for rinse aid | |
| 1 dispenser pump for liquid cleaning agent | |
| 1 dispenser pump for neutralizing agent | |
| Suction lance for media canisters 10–20 L (optional) | |
| DS5 Flex suction lance | |
| Volume flow control | |
| Steam condenser | |
| Spray pressure monitoring | |
| Spray arm monitoring | |
| How-to sequences | |
| Chamber lighting | |
| Interface for process documentation (optional) | |
| Multi-component filter system | |
| Variable-speed heating pump | |
| Load carrier - direct coupling | |
| AutoOpen | |
| In-door salt container | |
| Miele Service optical interface | |

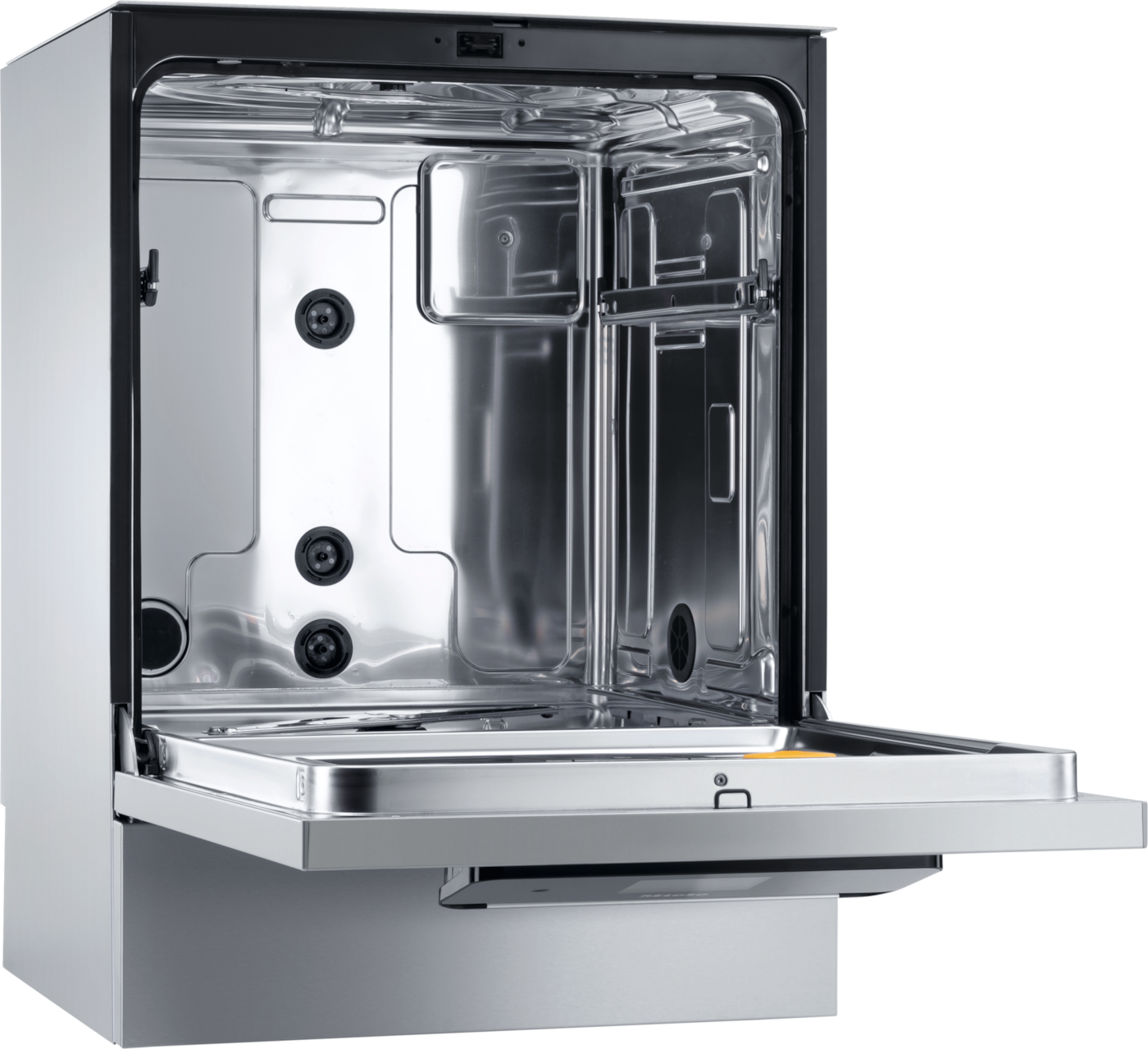

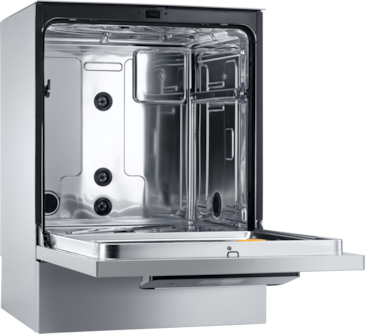

| Wash cabinet seamlessly welded using laser technology | |
| Heater elements outside wash cabinet | |
| Wash cabinet made of high-quality stainless steel (1.4301 / 304) | |
| Extensive components (option) |
- 1 door dispenser for rinse aid
- 1 dispenser pump for liquid cleaning agent
- 1 dispenser pump for neutralizing agent
- Suction lance for media canisters 10–20 L (optional)
- DS5 Flex suction lance
- Volume flow control
- Steam condenser
- Spray pressure monitoring
- Spray arm monitoring
- How-to sequences
- Chamber lighting
- Interface for process documentation (optional)
- Multi-component filter system
- Variable-speed heating pump
- Load carrier - direct coupling
- AutoOpen
- In-door salt container
- Miele Service optical interface
- Wash cabinet seamlessly welded using laser technology
- Heater elements outside wash cabinet
- Wash cabinet made of high-quality stainless steel (1.4301 / 304)
- Extensive components (option)
| IP safety class according to EN 60529: IP 21 | |
| EN 61010-1 | |
| EN 61010-2-040 | |
| EU medical device class IIb | |
| Health Canada, Medical Device class II |
- IP safety class according to EN 60529: IP 21
- EN 61010-1
- EN 61010-2-040
- EU medical device class IIb
- Health Canada, Medical Device class II
